Grip-tainer

SKU: 2577
Details
Details

 GRIPTAINER

griptainer

 GRIPTAINER









grip-tainer

LOCKBOLT

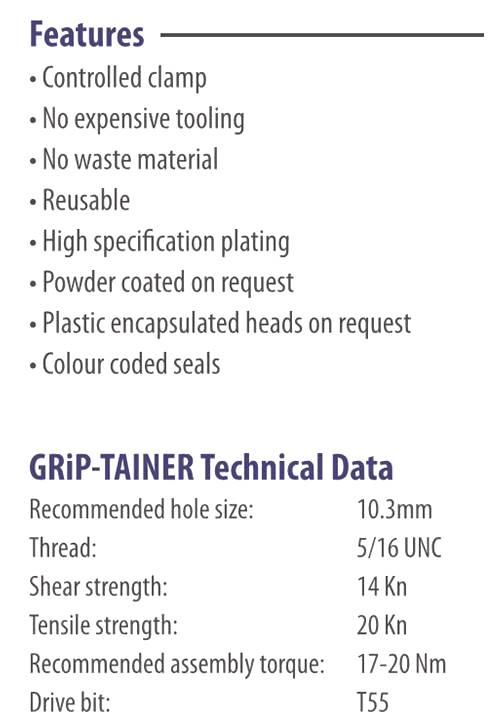

LOCK BOLT is a high strength steel fastener and shell, designed for joining composite panels to metal. Installed like an ordinary lock bolt, Avtainer has a large diameter low profile head. This is combined with a large diameter rear side shell - designed to spread the clamp load when attaching plywood, GRP, plastic laminates etc to other materials. As with all lock bolts, Avtainer is resistant to tampering - making it ideal where security is a consideration. Avtainer is widely used in the CVB industry where the common application is to attach a composite board to the aluminium extrusion used in the construction of high sided wagons and to fix door gear to composite/plywood doors. An integral under head neoprene seal ensures a watertight joint, making Avtainer suitable for the most arduous conditions. Available in either Normal zinc plate or with coloured plastic encapsulated head forms, there are also smaller diameter shells to allow assembly in limited access applications. Key features and benefits Prevents cracking and pull through of composite materials •Ideal for the assembly of GRP vehicle panel shear strength for strong joint integrity Underhead SantopreneTM seal •Internally locked stem provides a secure, vibration resistant joint •Smaller shell size available for use against metal surfaces Low profile head and shell give a neat appearance •Optional encapsulated heads to match the surrounding panel colour Quick to install with genesis placing tools Easy to inspect for tampering TIR approved Camtainer High strength, removable and reusable steel nuts and bolts designed to join glass reinforced plastic composite panels. Camtainer nuts and bolts are a versatile family of unique fasteners that provide positive sealing, tamper resistance, protection against corrosion and leakage and one-man installation with simple, low-cost tools. Features Low-profile molded head, available in a variety of colours CAMGRIP® epoxy on threads Special underhead seal TORX® Drive flanged nut Knurled shoulder Benefits One-person installation Positive high torque and excellent structural strength Reduces maintenance cost Increased resistance to corrosion and impact Tamper-resistant Seals out moisture Resists loosening from vibration and expansion/contraction Improved appearance with molded head fit-lock systems fit lock griptainer

Additional Info
Additional Info
Weight0.0100
Material0
Standard NumberNo
Second StandardNo
Drive0
Head0
American Generic Brand TermNo
Diameter0
LengthNo
