Metric Coarse Spirolock Flange Locking Nut Steel Class 10
SKU:
2521
Details
Details
Metric Coarse Spirolock Flange Locking Nut Steel Class 10

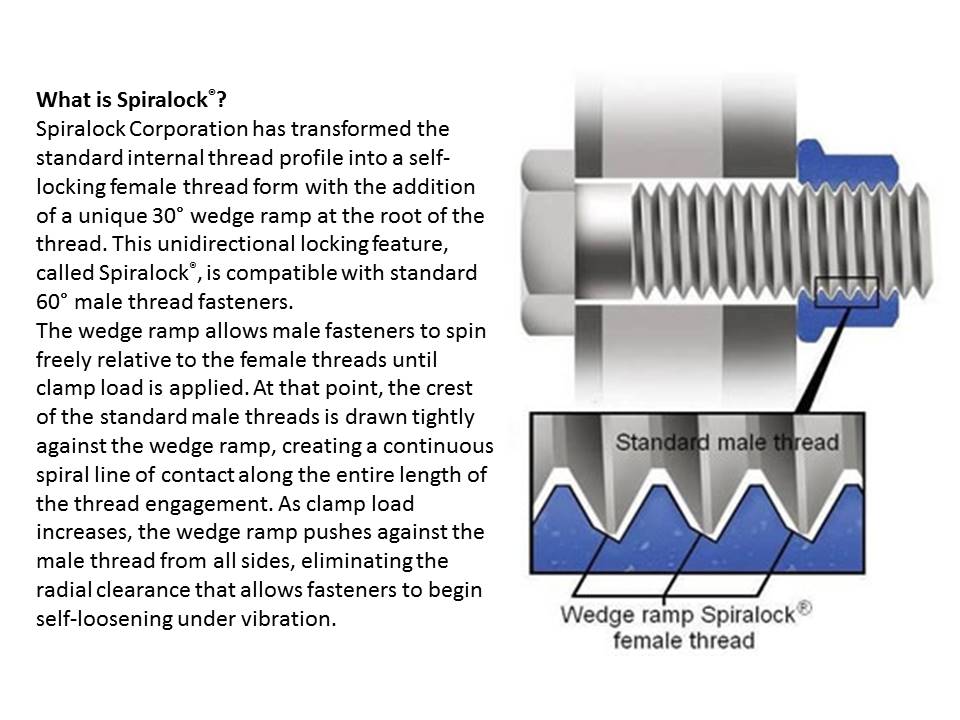

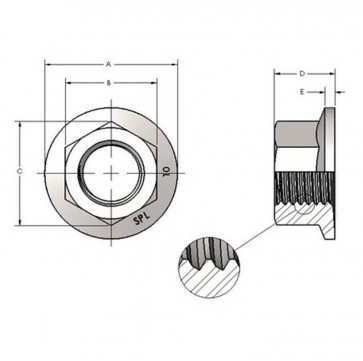

| Nominal Nut Size | EDP # | A | B | C | D | E | |
|---|---|---|---|---|---|---|---|
Flange Diameter | Across Flats | Across Corners | Nut Thickness | Minimum Flange Edge Thickness | |||
| M5 x 0.8 | M05080M | Max. Min. | 11.81 | 7.77 8.00 | 8.79 9.25 | 4.70 5.00 | 0.99 |
| M6 x 1.0 | M06100M | Max. Min. | 14.20 | 10.00 9.78 | 11.55 11.05 | 6.00 5.70 | 1.10 |
| M8 x 1.00 | M08100M | Max. Min. | 17.90 | 13.00 12.73 | 15.01 14.38 | 8.00 7.60 | 1.20 |
| M8 x 1.25 | M08125M | ||||||
| M10 x 1.25 | M10125M | Max. Min. | 21.80 | 15.00 14.73 | 17.32 16.64 | 10.00 9.60 | 1.50 |
| M10 x 1.50 | M10150M | ||||||
| M12 x 1.25 | M12125M | Max. Min. | 26.00 | 18.00 17.73 | 20.78 20.03 | 12.00 11.60 | 1.80 |
| M12 x 1.75 | M12175M | ||||||
| M14 x 1.25 | M14125M | Max. Min. | 29.90 | 21.00 20.67 | 24.25 23.35 | 14.00 13.30 | 2.10 |
| M14 x 1.50 | M14150M | ||||||
| M14 x 2.00 | M14200M | ||||||
| M16 x 1.50 | M16150M | Max. Min. | 34.50 | 24.00 23.67 | 27.71 26.75 | 16.00 15.30 | 2.40 |
| M16 x 2.00 | M16200M | ||||||
| M20 x 1.50 | M20150M | Max. Min. | 42.80 | 30.00 29.16 | 34.64 32.95 | 20.00 18.90 | 3.00 |
| M20 x 2.50 | M20250M | ||||||
| M24 x 2.00 | M24200M | Max. Min. | 51.73 | 36.00 34.80 | 41.57 39.67 | 24.00 22.86 | 3.60 |
| M24 x 3.00 | M24300M |
Additional Info
Additional Info
| Weight | 0.0100 |
|---|---|
| Material | 10.9 |
| Standard Number | No |
| Second Standard | No |
| Drive | Hexagon |
| Head | FLANGE |
| American Generic Brand Term | spirolock |
| Diameter | 0 |
| Length | No |
