Smalley Single Turn Narrow Section Wave Spring Inch Steel
Smalley narrow section wave springs were originally designed to pre-load packings in telescoping hydraulic cylinders. They have also found other applications where working space is highly limited. This Smalley Wave Spring series is designed to fit into a bore with a light snap to assure perfect concentricity between the wave spring and assembly. When these narrow section wave springs are compressed, radial expansion is taken up by the gap in the spring to eliminate binding.

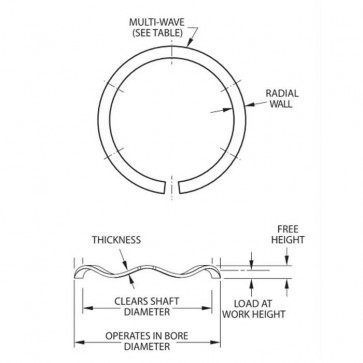

| Part Number | Operates in a bore dia. | Clears Shaft dia. | Load (lb) | Work Height | Reference Free Height | No of Waves | Thickness | Radial Wall | Reference Spring Rate (lb/in) | Type |
| YSSR-0325-N | 3.250 | 2.82 | 54 | 0.109 | 0.20 | 4 | 0.03 | 0.188 | 593 | gap |
| YSSR-0337-N | 3.375 | 2.94 | 56 | 0.109 | 0.22 | 4 | 0.03 | 0.188 | 505 | gap |
| YSSR-0350-N | 3.500 | 3.07 | 58 | 0.109 | 0.26 | 4 | 0.03 | 0.188 | 384 | gap |
| YSSR-0362-N | 3.625 | 3.19 | 60 | 0.109 | 0.27 | 4 | 0.03 | 0.188 | 373 | gap |
| YSSR-0375-N | 3.750 | 3.32 | 62 | 0.109 | 0.28 | 4 | 0.03 | 0.188 | 363 | gap |
| YSSR-0387-N | 3.875 | 3.44 | 64 | 0.109 | 0.31 | 4 | 0.03 | 0.188 | 318 | gap |
| YSSR-0400-N | 4.000 | 3.57 | 66 | 0.109 | 0.20 | 5 | 0.03 | 0.188 | 725 | gap |
| YSSR-0412-N | 4.125 | 3.69 | 67 | 0.109 | 0.20 | 5 | 0.03 | 0.188 | 736 | gap |
| YSSR-0425-N | 4.250 | 3.82 | 69 | 0.109 | 0.24 | 5 | 0.03 | 0.188 | 527 | gap |
| YSSR-0437-N | 4.375 | 3.94 | 70 | 0.109 | 0.21 | 5 | 0.03 | 0.188 | 693 | gap |
| YSSR-0450-N | 4.500 | 4.07 | 72 | 0.109 | 0.28 | 5 | 0.03 | 0.188 | 421 | gap |
| YSSR-0462-N | 4.625 | 4.19 | 73 | 0.125 | 0.27 | 5 | 0.03 | 0.188 | 503 | gap |
| YSSR-0475-N | 4.750 | 4.32 | 75 | 0.125 | 0.32 | 5 | 0.03 | 0.188 | 385 | gap |
| YSSR-0487-N | 4.875 | 4.44 | 76 | 0.125 | 0.32 | 5 | 0.03 | 0.188 | 390 | gap |
| YSSR-0500-N | 5.000 | 4.57 | 78 | 0.125 | 0.35 | 5 | 0.03 | 0.188 | 347 | gap |
| YSSR-0512-N | 5.125 | 4.69 | 80 | 0.125 | 0.35 | 5 | 0.03 | 0.188 | 356 | gap |
| YSSR-0525-N | 5.250 | 4.82 | 82 | 0.125 | 0.36 | 5 | 0.03 | 0.188 | 349 | gap |
| YSSR-0537-N | 5.375 | 4.94 | 84 | 0.125 | 0.44 | 5 | 0.03 | 0.188 | 267 | gap |
| YSSR-0550-N | 5.500 | 5.07 | 86 | 0.125 | 0.28 | 6 | 0.03 | 0.188 | 555 | gap |
| YSSR-0562-N | 5.625 | 5.19 | 88 | 0.125 | 0.29 | 6 | 0.03 | 0.188 | 533 | gap |
| YSSR-0575-N | 5.750 | 5.32 | 90 | 0.125 | 0.34 | 6 | 0.03 | 0.188 | 419 | gap |
| YSSR-0587-N | 5.875 | 5.44 | 92 | 0.125 | 0.34 | 6 | 0.03 | 0.188 | 428 | gap |
| YSSR-0600-N | 6.000 | 5.57 | 94 | 0.125 | 0.34 | 6 | 0.03 | 0.188 | 437 | gap |
| YSSR-0612-N | 6.125 | 5.69 | 96 | 0.125 | 0.28 | 7 | 0.03 | 0.188 | 619 | gap |
| YSSR-0625-N | 6.250 | 5.82 | 98 | 0.125 | 0.28 | 7 | 0.03 | 0.188 | 632 | gap |
| YSSR-0637-N | 6.375 | 5.94 | 100 | 0.125 | 0.30 | 7 | 0.03 | 0.188 | 571 | gap |
| YSSR-0650-N | 6.500 | 6.07 | 102 | 0.125 | 0.30 | 7 | 0.03 | 0.188 | 583 | gap |
| YSSR-0675-N | 6.750 | 6.32 | 104 | 0.125 | 0.30 | 7 | 0.03 | 0.188 | 594 | gap |
| YSSR-0700-N | 7.000 | 6.48 | 106 | 0.156 | 0.32 | 7 | 0.03 | 0.233 | 646 | gap |
| YSSR-0725-N | 7.250 | 6.73 | 108 | 0.156 | 0.33 | 7 | 0.03 | 0.233 | 621 | gap |
| YSSR-0750-N | 7.500 | 6.98 | 110 | 0.156 | 0.36 | 7 | 0.03 | 0.233 | 539 | gap |
| YSSR-0775-N | 7.750 | 7.23 | 114 | 0.156 | 0.38 | 7 | 0.03 | 0.233 | 509 | gap |
