FASTENER STRENGTH GRADE/CLASS

Fastener Class

Fasteners in both Metric and Inch described by their material, and dimensional categories are also described by their strength, class and grade information, full details are shown below along with pictorial descriptions.



               Links:           Metric Class                              Inch USA grades                Inch British grades

                              Metric stainless steel Class       Inch stainless steel grades                Hexagon







Metric class

Tensile Strength is the most widely associated threaded fastener mechanical property and is the maximum tension applied load the fastener can support before its fracture; it is also called Ultimate tensile strength UTS. Strength systems for bolts are based on levels of their ultimate tensile strength; this is when a bolt is subject to stretching along its axis and accordingly making it longer. If a small load is applied the amount of stretch is also small, and the bolt is stretching elastically; when the load is removed the bolt goes back to its original length, and the elastic limited has not been exceeded.
STRETCHED BOLT



If we increase the load to the bolt beyond its elastic limit, we will reach its yield strength, and the bolt is permanently stretched.

Eventually, a further increase in loading the bolt reaches its ultimate load and maximum tension, this point should not be exceeded or the fastener will develop a reduced shank called necking and will fail.





Metric fastener Strength Grades/Class

HEXAGON 8.8 BOLT HEXAGON 10.9 BOLT  HEXAGON 12.9 BOLT  12.9 SOCKET SCREW

The metric property classes (grades) of strength are defined by two numbers separated by a dot, where increasing numbers represents an increasing tensile strength.

The number to the left of the dot indicates the ultimate tensile strength in Mpa divided by 100.

The number to the right is the ratio between yield strength and tensile strength. Fasteners with property class 8.8 have a minimum tensile strength of 800 MPa and yield stress of 0.8x800=640 MPa.   Product





Metric nut Class

METRIC NUT CLASS 8  METRIC NUT CLASS 10  METRIC NUT CLASS 12

For hexagon nuts, the property class is represented by a single-digit symbol. The numerals approximate 1/100 of the minimum tensile strength in MPa. For example, a nut of property class 8 has a minimum tensile strength of 800 MPa. This number also represents the appropriate class of bolt with which the nut should be matched. The correct match for a nut used with bolts of property class 10.9 is a grade 10 nut.   Product





Inch American fastener Grades

Alternate systems exist for unified inch series bolts and screws in carbon and alloy steels.

Bolts are typically marked on the head to show the grade of the bolt and the manufacturers identification.

           Grade 2                                       Grade 5                                  Grade 8

INCH BOLTS GRADE 2   INCH BOLTS GRADE 5   GRADE 8 BOLTS



USA Grade 2 bolts are commercial low tensile bolts and do not require grade marking; they normally have the manufacturers mark on the head the material is similar in strength to European metric class 4.6

USA Grade 5 bolts are the most common bolts found in automotive and other applications. USA Grade 5 bolts have three evenly spaced radial lines on the head, and the material is similar in strength to European metric class 8.8

USA Grade 8 bolts are alloy and are stronger than grade 5 bolts. They are used in demanding applications. USA Grade 8 bolts have six evenly spaced radial lines on the head, and the material is similar in strength to European metric class 10.9

Products



Inch American Nuts Grades

Grade A  grade 2                         Grade B  grade 5                                          Grade C grade 8

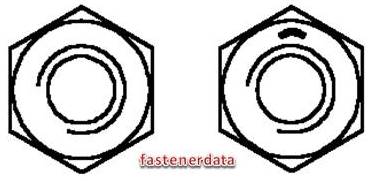

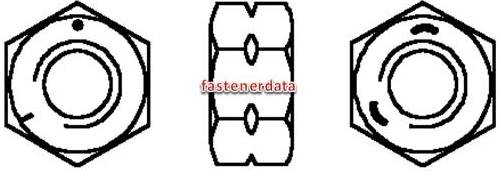

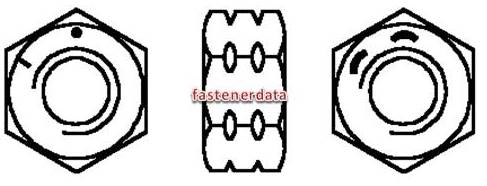

GRADE 2 INCH NUTS        GRADE 5 NUTS         GRADE 8 NUTS

Commercial hexagon nuts are made to SAE J995. Grade A is a low tensile nut and is used with grade 2 bolts; grade B is used with a Grade 5 bolt and grade C with a Grade 5 bolt.

Hexagon nuts can also be obtained to  ASTM A563 in similar grades, and there are other standards covering gas and oil grades.   Product

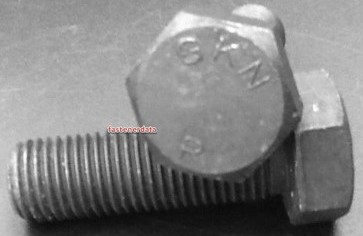

GRADE R BOLTGrades for British inch sizes

Commercial British fasteners are produced to grade 'R' for Whitworth and BSF and to grade 'S' for British Unc/Unf and the designation letter and manufacturers mark are shown on the head. Unless specified grade 'S' unified will be replaced by USA SAE grade 5, a similar grade/Property class.







        British Grade Comparison                                                                        DIN Class Comparison

BRITISH GRADES DIN CLASS

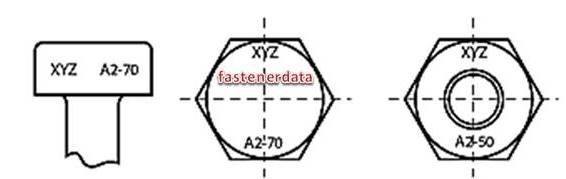

Stainless Steel Metric Class

STAINLESS STEEL GRADES AND CLASS

Commercial stainless steel bolts and fasteners are made from austenitic stainless steels that use the designation letter ‘A’. Austenitic materials are the best for corrosion resistance and extensively used in the production of stainless steel fasteners amounting to approximately 75% of all stainless steels produced. Austenitic is the metallurgical condition of these stainless alloys in that they can only be hardened by cold working, not by heat treatment.

For the austenitic steels, there are three important alloy classes the most common of these is A2; if increased corrosion resistance is required the marine grade of A4 is the available commercial class. Free machining grade is designated A1 and is used in dowels, pins and other applications.

The final identification is strength class/grade, which is in (Mega Pascal’s) MPa divided by 10. Accordingly, A2-70 is at 700 MPa strength and A2-80 at 800 MPa.   Product





Stainless steel inch Grades

18-8 304 STAINLESS STEEL













F593

Fasteners produced for the Inch markets are similarly made from Austenitic stainless steel to F593 and are referred to as 304 but sometimes by their old reference 18-8 that relate to containing approximately 18% chromium and 8% nickel.   Product







316 STAINLESS STEEL









316 Inch Stainless

The second most popular type of stainless, after Type 304, is Type 316. Fasteners in Type 316 stainless steel compared to 304 have the chromium content lowered from 18% to 16%; however, the nickel content is raised to 10% and 2% molybdenum is added to the material mix. This change in the chromium/nickel ratio and the addition of the molybdenum increases the resistance to chlorides. This is why Type 316 stainless is often used in more corrosive environments where the material will be exposed to chemical, solvent, or salt water corrosion and makes it the preferred material for marine construction.
